PROJECT 01 / M.TECH PROJECT
Design and Implementation of a Hybrid Solar–Grid Interface for Water Pump Systems
Solar–grid power sharing for water pump systems.

Project Overview
This project develops a hybrid solar–grid interface for water pump systems, combining power from both sources through a common DC bus rather than switching between them. The PV source is operated at its maximum power point (MPP) to extract the maximum available solar power, while the grid supplies the additional power required by the pump. For instance, if the pump requires 3 kW and the PV source provides 2 kW, the remaining 1 kW is drawn from the grid. This approach prioritizes available solar power while ensuring that the pump receives the required operating power.
The project involved system modelling and simulation, controller design, power-sharing algorithm development, PCB development, digital implementation, and hardware development and testing.
System Architecture
The PV-side boost converter extracts the maximum available solar power using MPPT. The grid-side PFC boost converter regulates the DC-bus voltage and supplies the remaining load demand.

PGrid + PPV = PLoad
Experimental Results

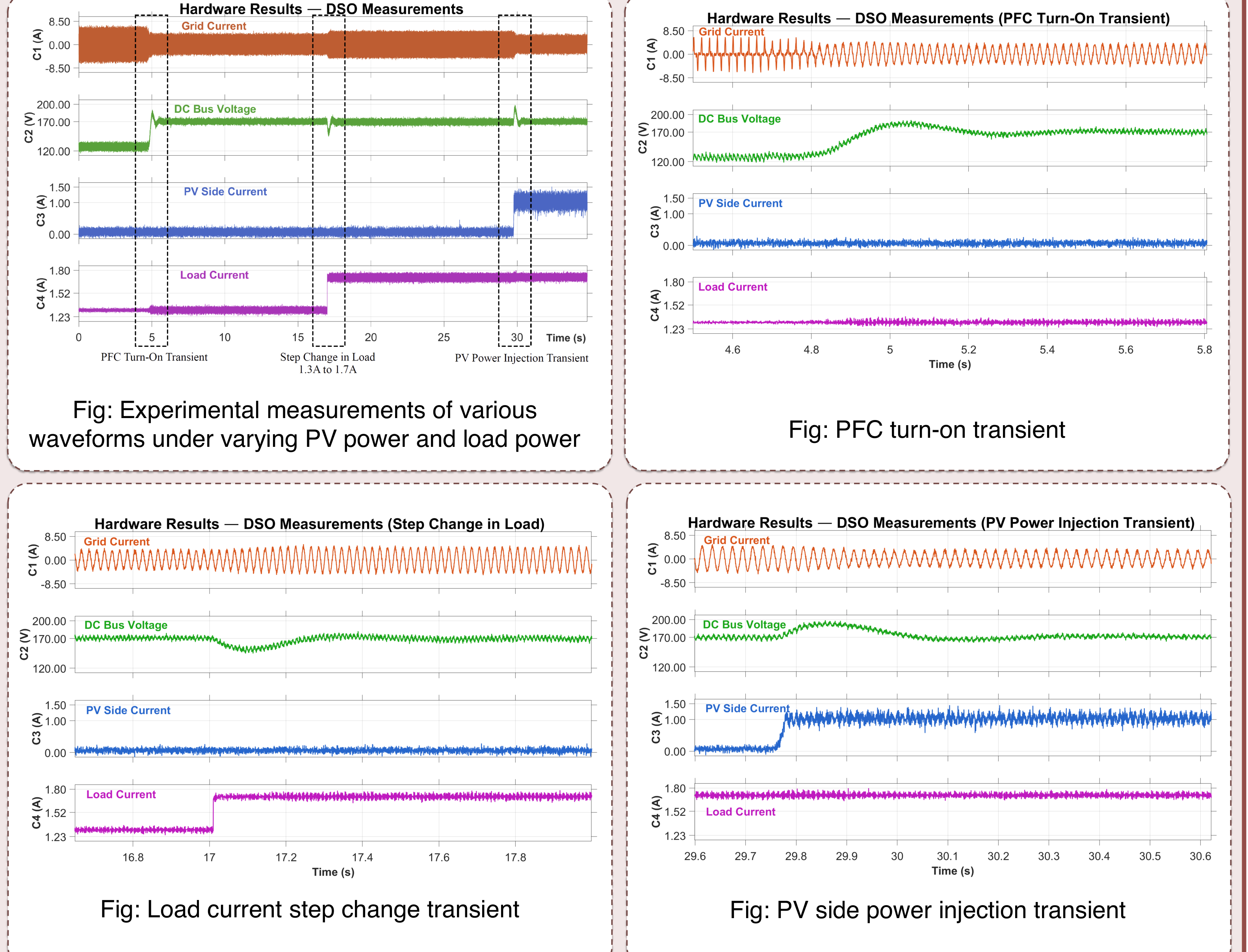

The following waveforms show the hardware results of the developed prototype under various operating conditions.

The 3 kW and 380 V values are system design specifications. The displayed proof-of-concept traces represent the operating conditions shown in the poster; they are not presented as a full-rated-power validation.
Read the project poster ↗
